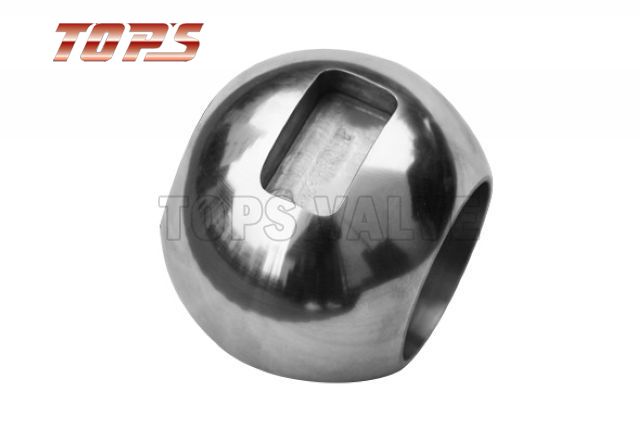

Floating Balls
In Floating Ball design, two seat rings are used to support the ball in a floating-ball design.The flow control shaft/valve stem is attached to the ball at a slotted right angle to the ball valve's port. This design makes the ball to float or move in the direction of the seat ring on top, when the shaft is rotated. When the ball valve is closed, fluid pressure makes the ball to push against the seat ring at the bottom. This design is suited for all differential ball valve body styles.
Floating Valve Ball Specification
|
Pressure Rating |
Class 150LB-600LB |
|
Nominal Size |
1/2’’ ~ 12’’ |
|
Support Types |
Rectangle Socket, Curve Slot, Support Plate etc |
|
Materials |
Carbon steel, stainless steel, cryogenic steel and special alloy. Duplex A182 F51, A182 F53, A564 630 (17-4PH), Inconel 625, 690, 600, 617, 718, 718 SPF, Monel 1400, R-405, K-500, Titanium Gr3, Gr4, Gr7, Incoloy 800, 825, 903, 907, Hastelloy C serial, B etc |
|
Coating |
ENP Plating Chrome Plating Tungsten Carbide Chrome Carbide Stellite Inconel |
